Screw press
Equipment for dewatering urban and industrial sludges.

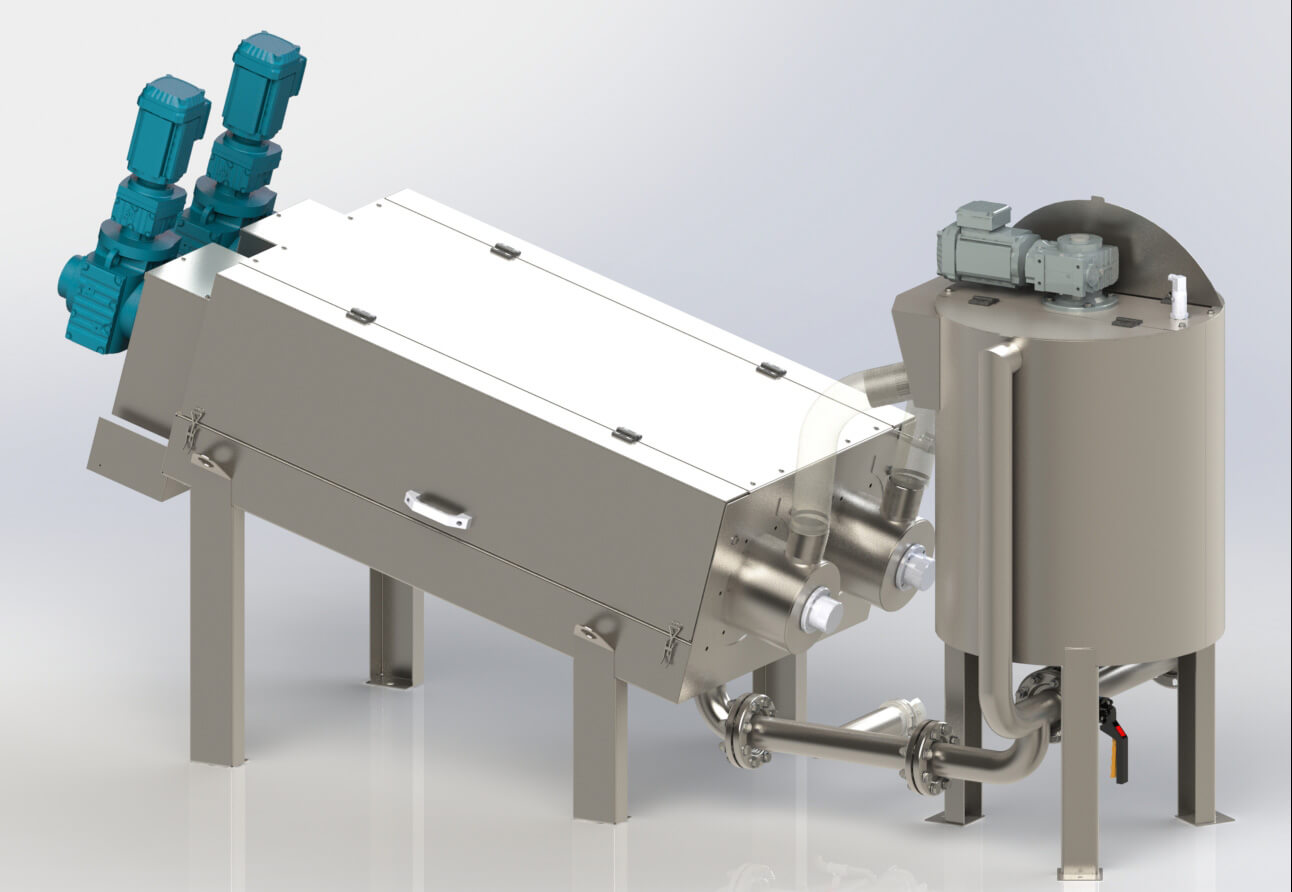

The BioPress BIOTRADE screw press is an equipment for dewatering sewage sludge by pressing. This consists of a conical Archimedean screw and a drum formed by alternating fixed and mobile discs which compress the flocculated sludge.
Unlike perforated drums, the disc drum is much less susceptible to clogging. The setting in motion of the discs as the screw passes limits this phenomenon. This natural action is complemented by a nozzle washing system.
Advantages of the screw press:
- Easy to use
- Robust (24h / 24h operation possible)
- Low energy consumption
- Reduced maintenance cost.
Model
BIOTRADE sells different models of screw presses in 304L stainless steel or 316L stainless steel sized according to the load of suspended matter to be dehydrated.
CHARACTERISTICS

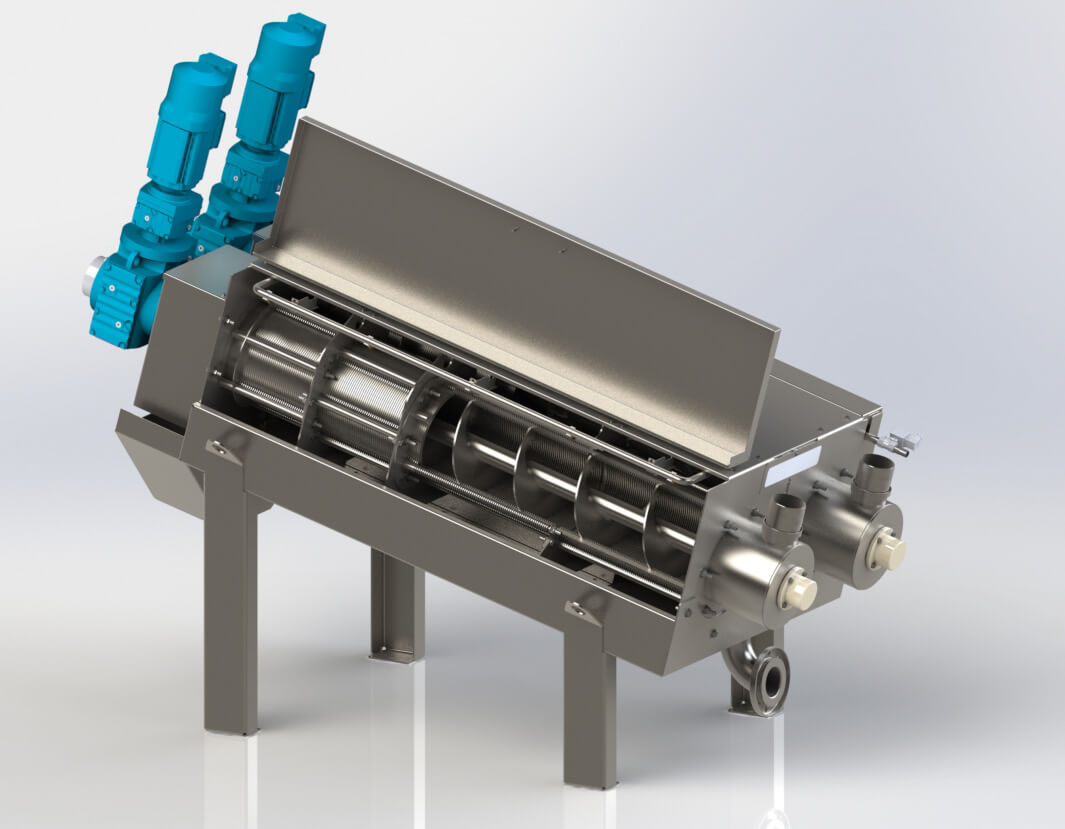

BioPress screw presses consist of the following components:
- A stainless steel structure
- A hinged hinged cover
- One or more Archimedean screws
- One or more disc drum lines
- One or more counter-pressure cones
- A washing system by nozzles
- A washing solenoid valve
- One or more slow speed geared motors
- A dewatered sludge discharge hopper
- Fittings for the arrival of the flocculated sludge and for the evacuation of the filtrate
Range
BIOTRADE manufactures screw presses for dewatering sludge from 10 to 150 kgMS / h.
ACCESSORIES
- Dynamic flocculation tank
- Control box with automaton
- Tailor-made discharge hopper (for booster pump, conveyor, belt or gravity discharge)
- Deodorization flange
- Polymer preparation
- Screw conveyor without core
- Booster pump
- Sludge inlet pump
