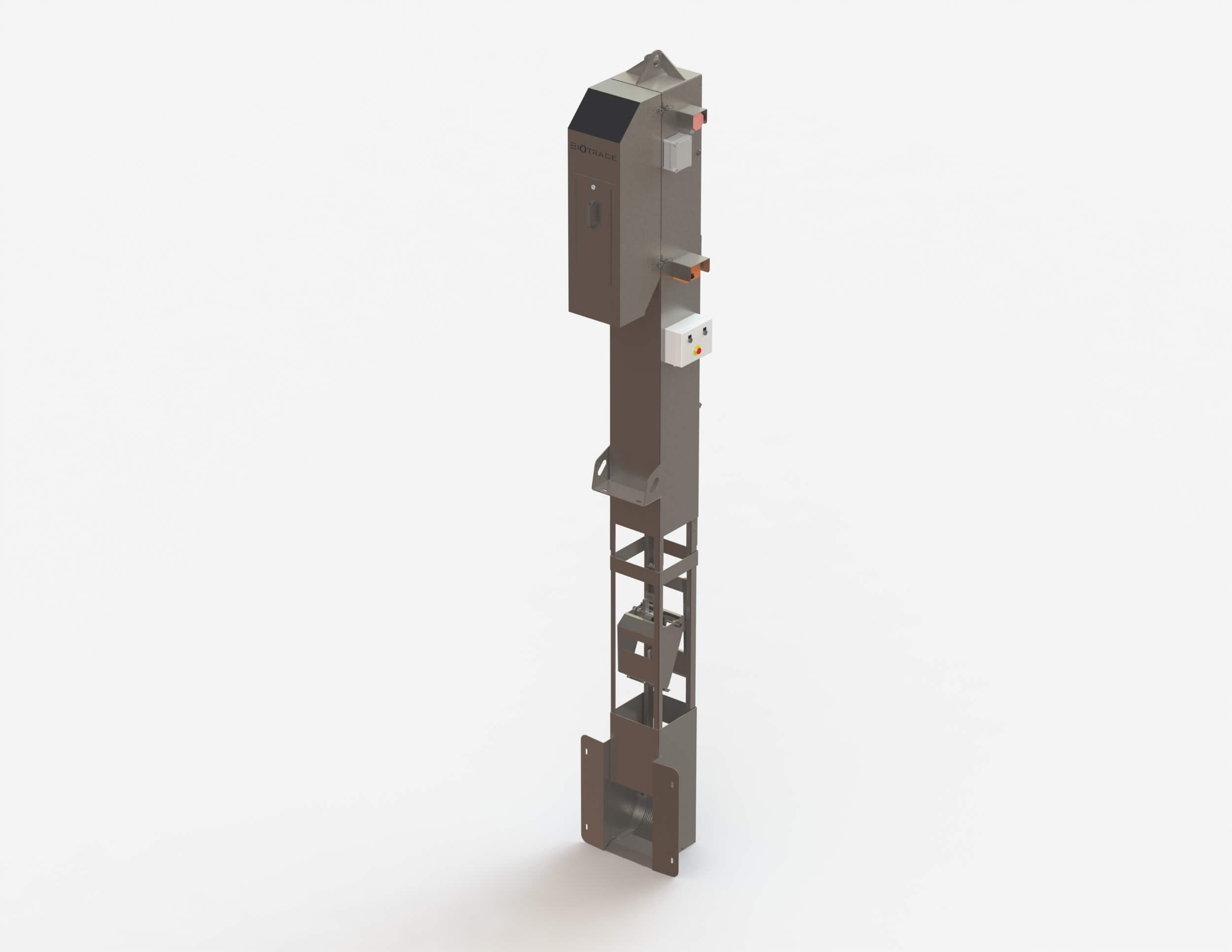

Bar Screen
Equipment for automatic screnning of urban or industrial wastewater.
The effluent arrives at the screen by a canal or lifting station. it passes through a grid that retains the particles. The latter are then collected by the grapple rake and subsequently downstream discharged.
Model
BIOTRADE markets different types of bar screens based on input flow rate and bar spacing and installation, which are designed and manufactured in France.
CHARACTERISTICS
Bar screens are composed of different elements:
- Stainless steel structure
- Lifting strap
- Stainless steel screen
- Adapters
- Connection box
Range
BIOTRADE manufactures vertical bar screens with bar spacing from 6 mm to 50 mm accepting flow rates ranging to 1 000 m3 / h.
ACCESSORIES
- Waste conveying / compacting screw with automatic bagging
- Electronic torque limiter on motorization
(Click here to enlarge )
