Rotary drum with internal supply
Equipment for fine pretreatment of urban or industrial wastewater.

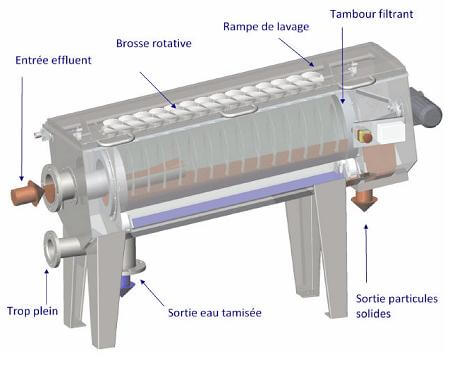

The effluents are supplied via a pipe into a perforated drum equipped with an internal transport screw, the drum is driven in rotation by a geared motor.
The filtered effluent is collected in the bottom of the body and directed gravity towards the outlet tube.
The remaining particles in the drum are conveyed by the screw, they drain along the length of the drum and are recovered by the outlet chute opposite to the inlet pipe. A rotating brush and a washing ramp are used to clean the drum against the risk of clogging.
Model

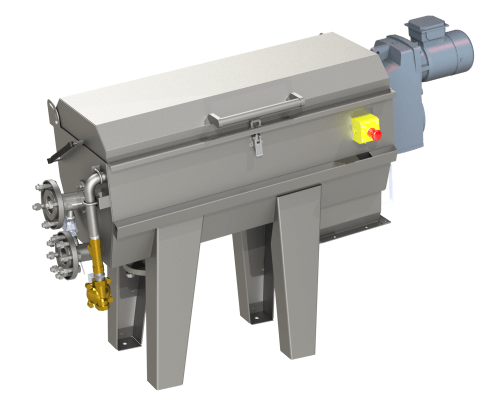

BIOTRADE markets different types of internal feed sieves according to the input flow and the size of the meshes. They are designed and manufactured in France.
TECHNICAL CHARACTERISTICS
Rotary drum with internal supply is composed of different elements:
- Stainless steel drum
- Washing nozzles
- Cylindrical brushes
- Connections with customized flanges for the entry and exit of effluents
Range
BIOTRADE manufactures rotary drum with internal with sieving of 3 to 30 mm accepting flow rates ranging from 1 to 600 m3 / h.
ACCESSORIES

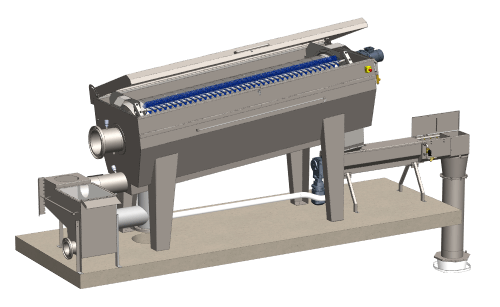

- Waste conveying / compacting screw with automatic bagging
- Stainless steel waste chute
- Overflow detection probe
- Bypass box with manual grid
- Control box
- Electronic torque limiter on motorization
- Automatic bagger
