Rotary sieve with external supply

Pretreatment >

Rotary sieve with external supply

Equipment for fine pretreatment of urban or industrial wastewater.

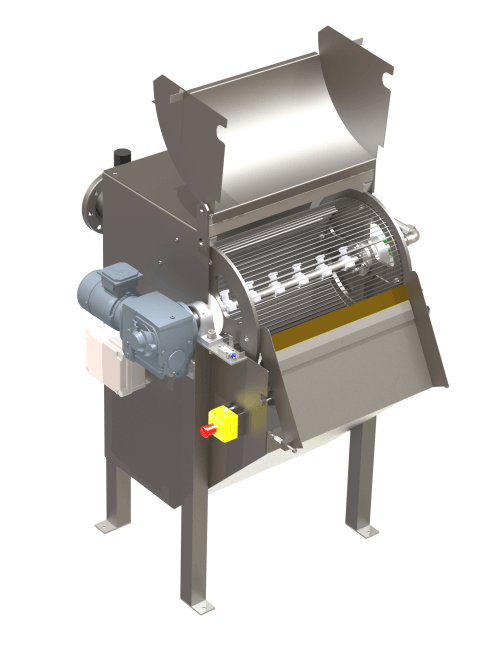

The whole of the effluent arrives in the feed register, it rises in load on the top of the drum while keeping the waste on its periphery and sifting inwards the liquid.

The waste is carried towards the front of the screen where it is removed from the drum by an external scraper.

The scraper is mounted on a spring assembly to provide constant pressure on the drum.

The washing ramp is located inside the drum to unclog it.

Model

BIOTRADE markets different types of sieves with external power supply according to the input flow and the air gap that are designed and manufactured in France.

TECHNICAL CHARACTERISTICS

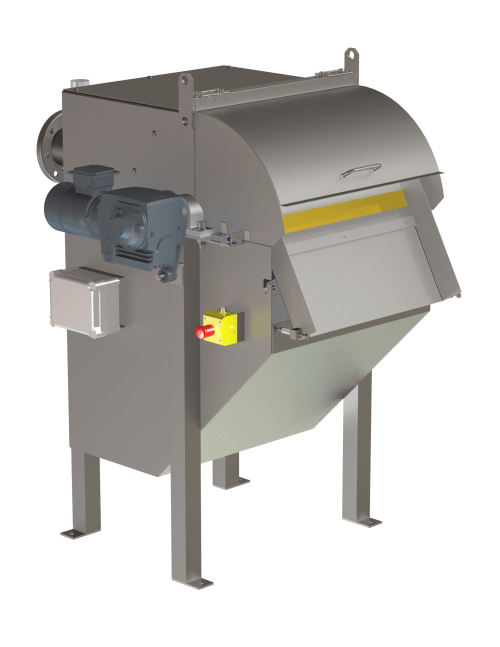

Rotary sieve with external supply is composed of different elements:

  • Stainless steel drum
  • Scraper
  • Washing nozzles

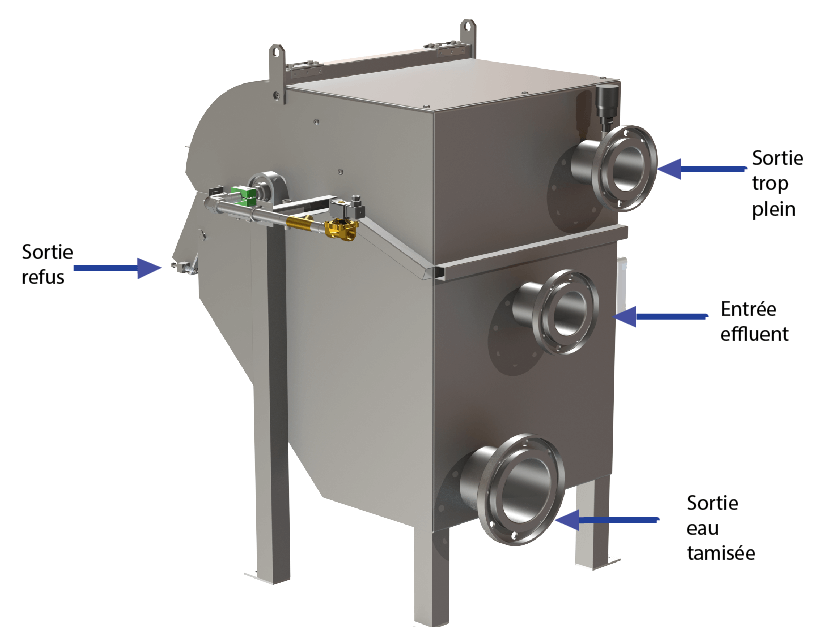

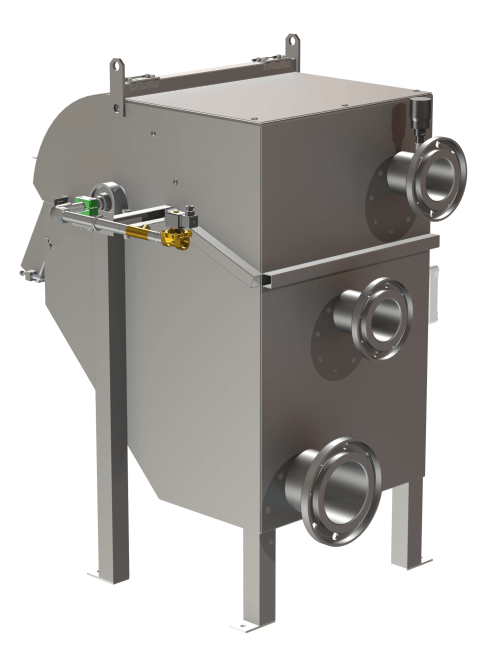

  • Connections with customized flanges for the entry and exit of effluents
Range

BIOTRADE produces internally supplied sieves with sieving of 250 μm to 2.5 mm accepting flow rates ranging from 1 to 600 m3 / h.

ACCESSORIES

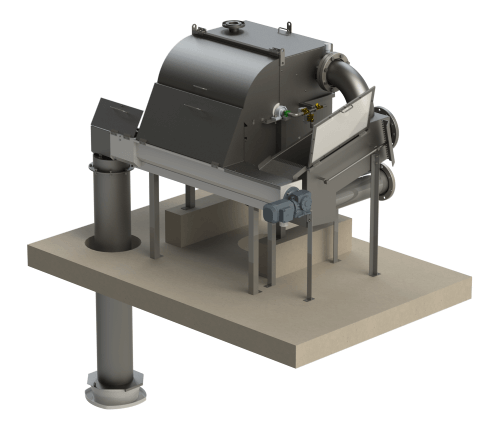

  • Waste conveying / compacting screw with automatic bagging
  • Stainless steel waste chute
  • Overflow detection probe
  • Bypass box with manual grating
  • Control box
  • Electronic torque limiter on motorization
  • Automatic bagger











Previous
Next

(Click here to enlarge )


Contact us for more information
